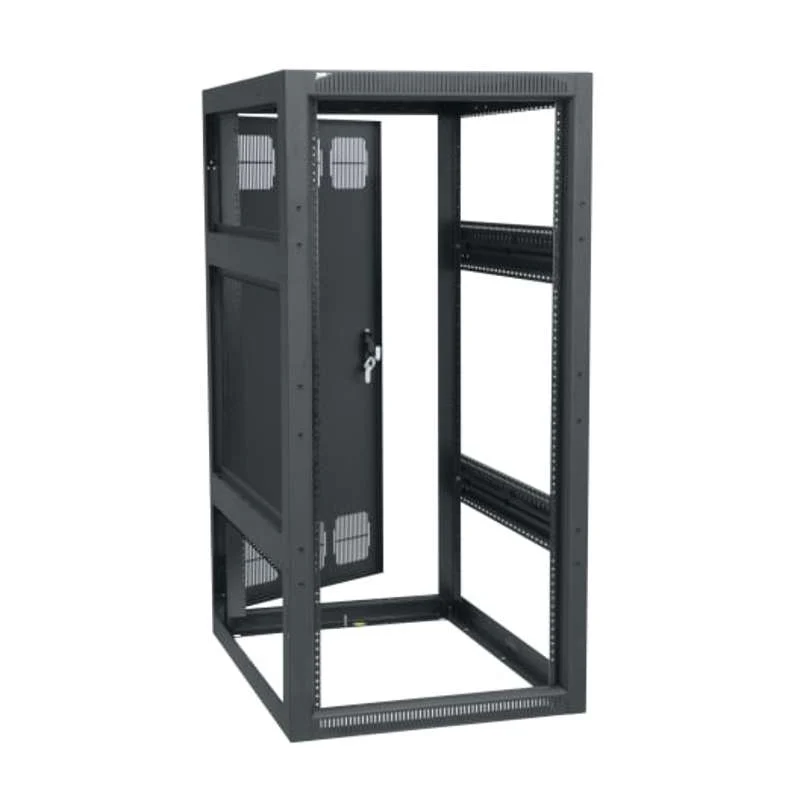

25 RU BGR Series Rack, 27 Inches Deep with Rear Door

The #1 AV rack because it is both Forward and Lever Lock™ compatible providing maximum mounting capacity on and off the rail and a suite of tool-free accessories making rack installations 5Xs faster!

• 25RU
• 27" (686mm) Depth
• The 1st Forward Compatible rack
• Breakthrough design provides high rack strength without extra weight
• Accepts Lever Lock™ system tool free cable management accessories

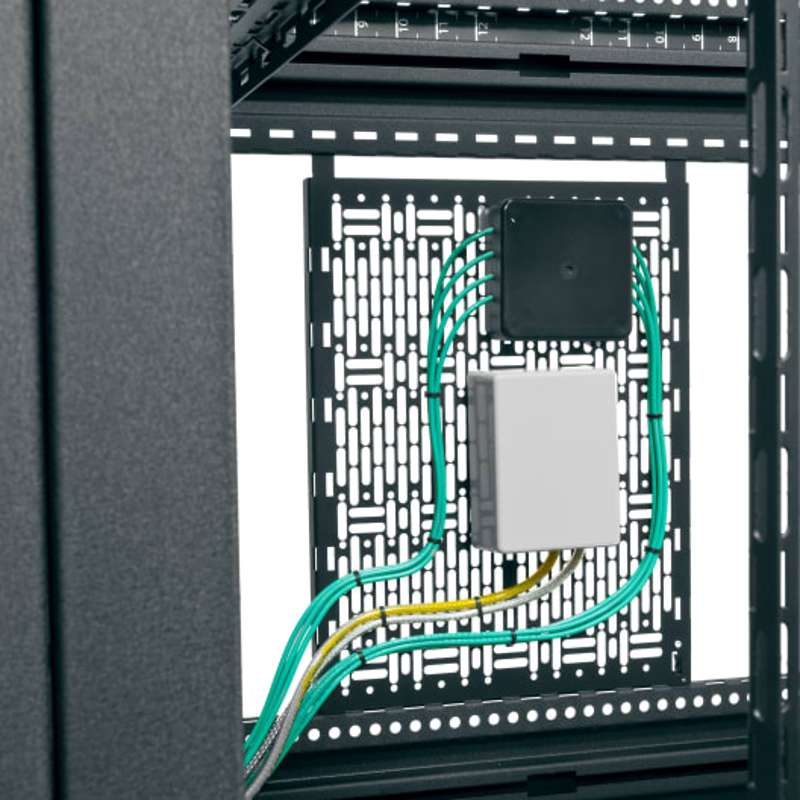

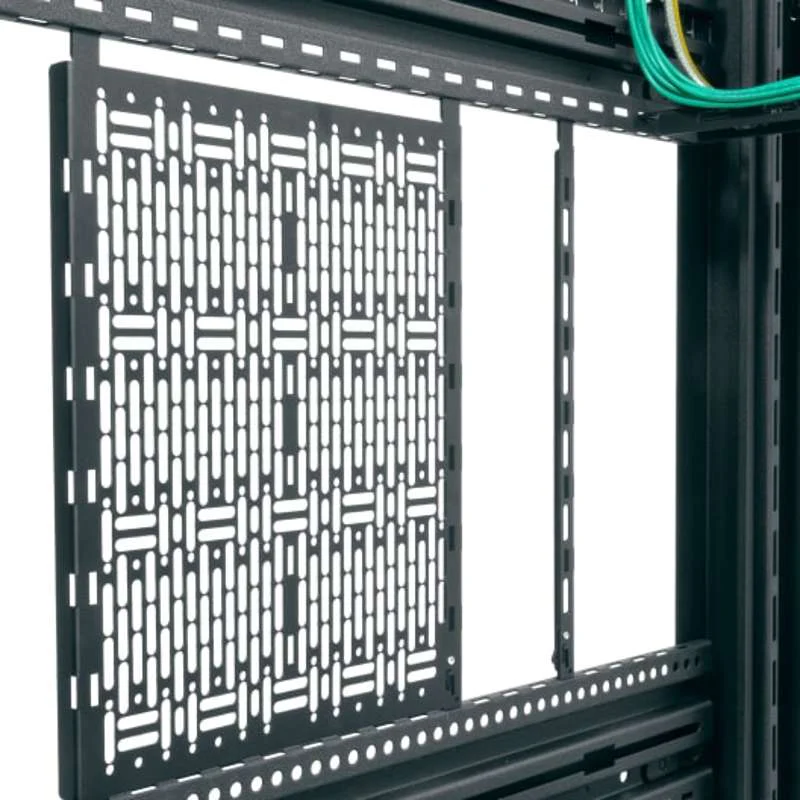

• The 23” width gives you extra room in “no-man’s land” for front-to-back cable management and for mounting small devices on Lever Lock™ freeing up valuable rackspace.
• Innovative side lacing on the Forward rear rackrail provides flexibility for internal cabling and accepts the Forward vertical cable management products.
• Includes standard vented rack rear door that accepts optional fans

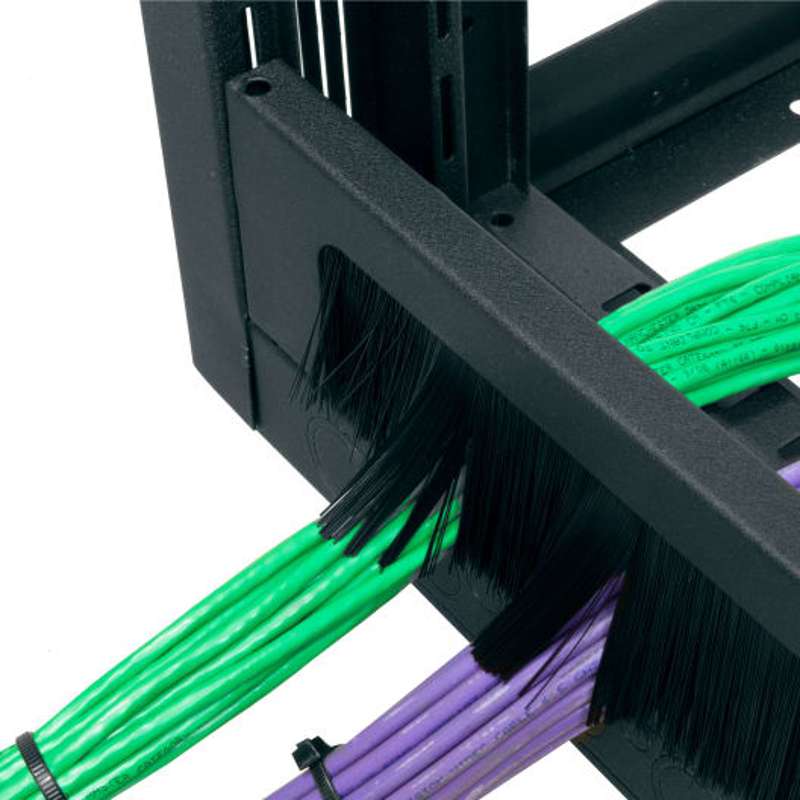

• Accepts brush grommet rear door kit for a large cable passage without fishing

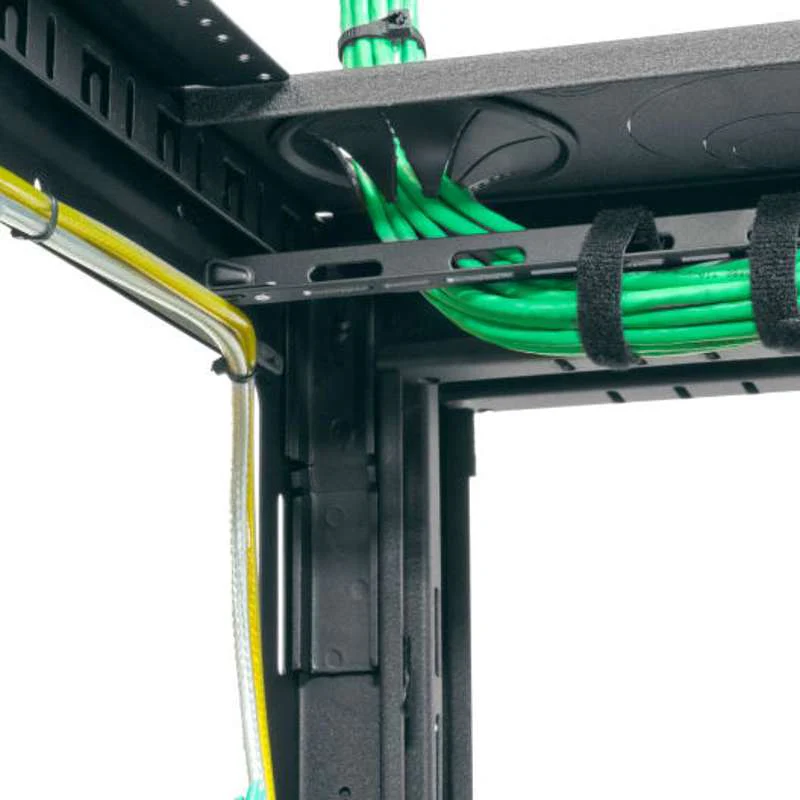

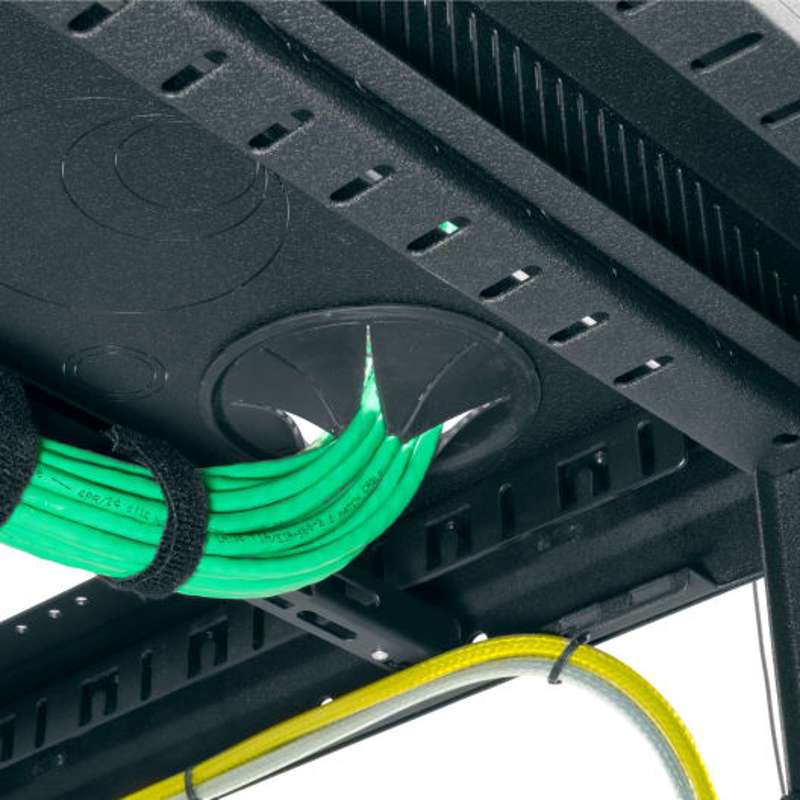

• Wide open rack top and bottom offer many cabling and cooling options
• Standard front and rear adjustable Forward Rackrail with numbered spaces

Dimensions & Measurements

• Depth: 27 in (68.6 cm)
• Height: 47.88 in (121.6 cm)
• Panel Width: 19 in (48.3 cm)
• Rack Units: 25 RU
• Shipping Weight: 107 lbs (48.5 kg)
• UL Load Capacity: 3000 lbs (1,360.8 kg)
• Usable Depth: 24.4 in (62 cm)
• Usable Height: 43.88 in (111.5 cm)
• Width: 23 in (58.4 cm)

Characteristics & Features

• Color: Black
• Federal Ops Country of Origin: USA
• Finish: Black Wrinkle Powder Coat
• Forward Compatible: Yes
• Gangable: Yes
• Handles: 25mm x 150mm Swing Handle
• Material: Steel
• Product Configuration: Frame Only
• Rack Rail Type: Forward Rackrail
• Rear Door: Yes
• Seismic Rated: Yes
