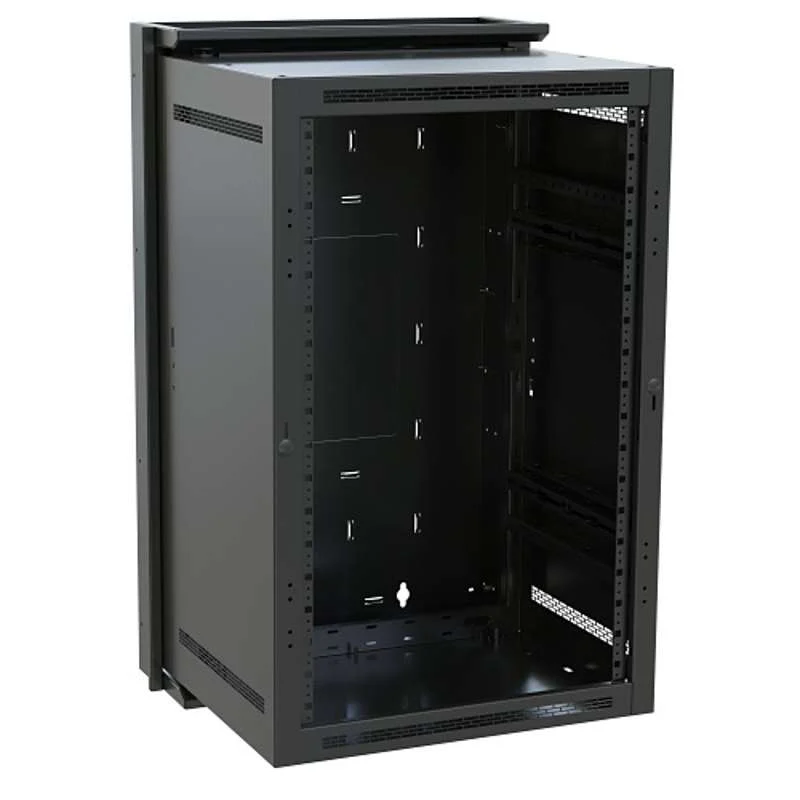

DWR Series Pivoting Wall Rack - DWR-18-22

The DWR Series Wall Racks are now Forward and Lever Lock™ compatible providing maximum mounting capacity on and off the rail and a suite of tool-free accessories making rack installations 5Xs faster!

18RU and 22" Deep

• Now equipped with the revolutionary Forward rackrail giving you the ability to use Forward blank panels, vent panels and horizontal cable management. Rear rackrail is optional (FWD-DWR-RRxx)

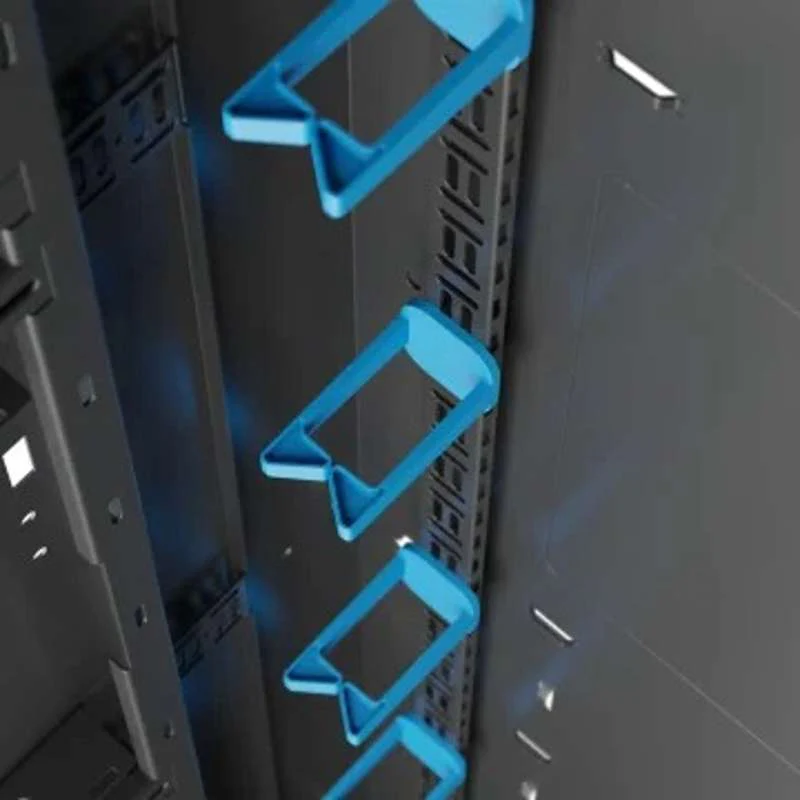

• Now accepts patented Lever Lock™ tool free and hardware free internal device and cable management system accessories in the center section and the backpan (with LL-DWR/SR-BP)
• Robust welded steel construction, with Seismic certification when used with DWRSR-ZL latch
• Center section rear channel accommodates optional PDT and PD Slim PDUs to save space

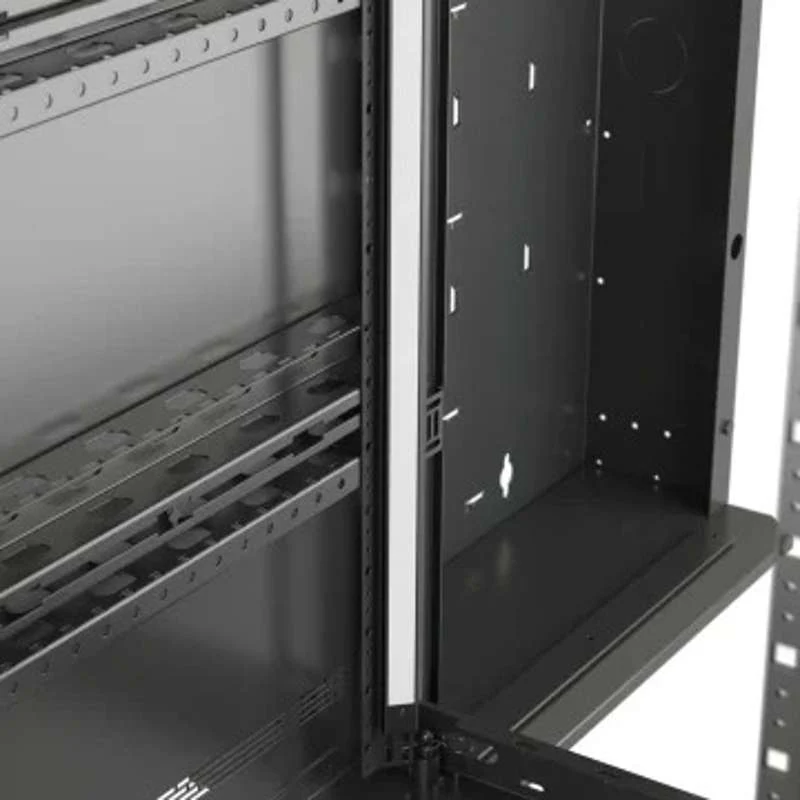

• Tool-Free Quick-Mount™ system for easy, one-person mounting of the center section to the backpan on the jobsite
• Optional minimum-clearance latch allows side-by-side or interior corner mounting to save room

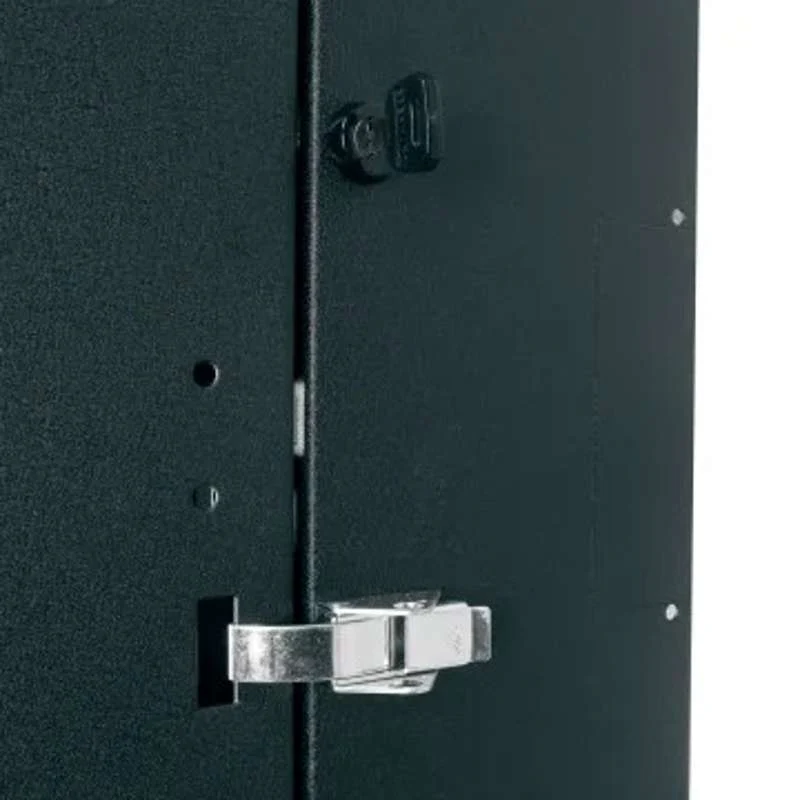

• Center section swing is reversible, and can be both key-locked and padlocked
• Center section is keyed differently from optional front door for additional security
• Designed for active or passive cooling to support all systems

Dimensions & Measurements

• Depth: 22
• Height: 38.56
• Product Weight: 72.1 lbs (32.7 kg)
• Rack Units: 18 RU
• Shipping Weight: 108.6 lbs (49.3 kg)
• UL Load Capacity: 250 lbs (113.4 kg)
• Usable Depth: 20
• Usable Height: 31.5
• Width: 23.4

Characteristics & Features

• Available Internationally: Yes
• Color: Black
• Federal Ops Country of Origin: USA
• Finish: Black Wrinkle Powder Coat
• Forward Compatible: Yes
• Front Door: No
• Material: Steel
• Rack Rail Type: Forward Rackrail
• Seismic Rated: Yes
• UPC: 656747005381

Certifications & Warranties

• Certifications: CSA Standard, TAA, UL Listed
• Patent Number: 7278183
• Seismic Load Capacity: 155 lbs (70.3 kg)
