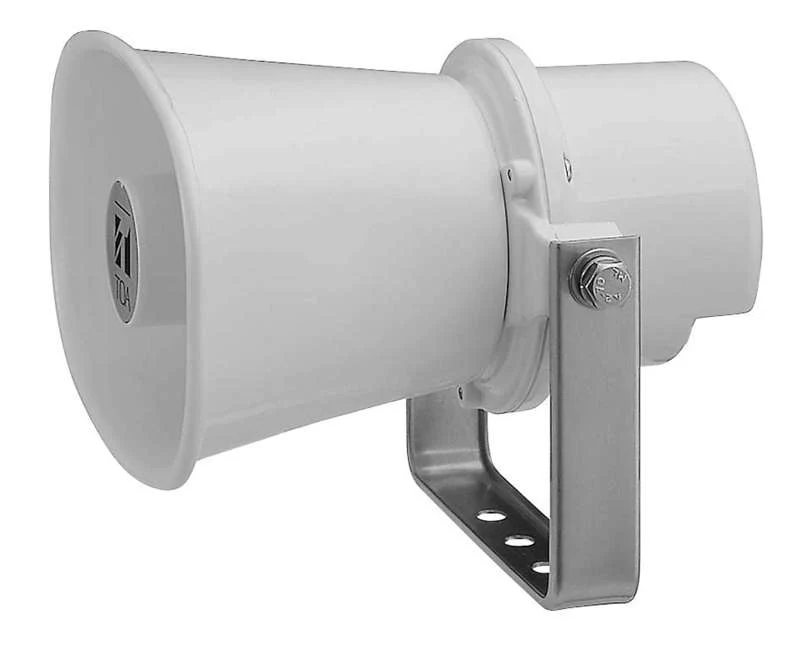

TOA Electronics SC‑610T Paging Horn Speaker – 10W, Transformer‑Taps, Weather‑Resistant IP65 Horn
Paging Horn Speaker – SC-610T
The TOA SC‑610T is a compact, weather‑resistant paging horn speaker engineered for clear, high‑intelligibility voice announcements in both indoor and outdoor environments. Its durable construction, stainless‑steel hardware, and IP65 protection rating ensure long‑term reliability in commercial, industrial, and public‑address applications.
Featuring a high sound pressure level and flexible transformer tap settings, the SC‑610T integrates easily into distributed audio systems, making it ideal for warehouses, factories, schools, parking lots, transportation terminals, and other large-area paging installations.
Key Features
- High Intelligibility: Delivers clear voice announcements with a powerful 110 dB output.
- Weather-Resistant Design: IP65-rated housing and corrosion-resistant components for dependable outdoor use.
- Durable Construction: Shock-resistant aluminum horn and stainless-steel bracket ensure long service life.
- Lightweight & Compact: Weighs only 1.2 kg (2.65 lbs) for easy installation in a wide range of locations.
- Flexible System Integration: Built-in impedance selector provides compatibility with 25 V and 70 V distributed systems.
Specifications
Electrical
- Rated Input: 10 W
-
Rated Impedance:
- 70 V Line: 500 Ω (10 W), 1 kΩ (5 W), 2 kΩ (2.5 W)
- 25 V Line: 63 Ω (10 W), 130 Ω (5 W), 500 Ω (1.3 W), 1 kΩ (0.6 W), 2 kΩ (0.3 W)
Acoustic Performance
- Sound Pressure Level: 110 dB (1 W, 1 m at 500 Hz–2.5 kHz peak)
- Frequency Response: 315 Hz – 12.5 kHz
Connections
- Polarity: Hot = Black, Common = White
- Speaker Cable: PVC-insulated cabtyre cable, 6 mm diameter, 600 mm length
Environmental
- Dust/Water Protection: IP65
- Operating Temperature: −20 °C to +55 °C (−4 °F to 131 °F), no condensation
Construction
- Horn Flare: Aluminum, off‑white, powder-coat finish
- Reflector Horn & Rear Cover: ABS resin, off‑white
- Bracket, Screws & Bolts: Stainless steel
Dimensions & Weight
- Dimensions: 172 (W) × 161 (H) × 188 (D) mm (6.77" × 6.34" × 7.40")
- Weight: 1.2 kg (2.65 lbs)
